5/32 MCQs for:

MOTION: Simple harmonic motion (SHM)

For vibrational motion, the maximum displacement from the equilibrium point is called the:

Amplitude.

Frequency.

Period.

Wavelength.

Doubling only the spring constant of a vibrating mass-and-spring system produces what effect on the system's mechanical energy?

Increases he energy by a factor of four.

Produces no change.

Increases the energy by a factor of two.

Increases the energy by a factor of three.

A mass on a spring undergoes SHM. When the mass is at maximum displacement from equilibrium, its instantaneous acceleration

Is zero.

Is less than maximum, but not zero.

Cannot be determined from the information given.

Is a maximum.

When the length of a simple pendulum is tripled, the time for one complete vibration increases by a factor of:

1.7.

3.

1.4.

2.

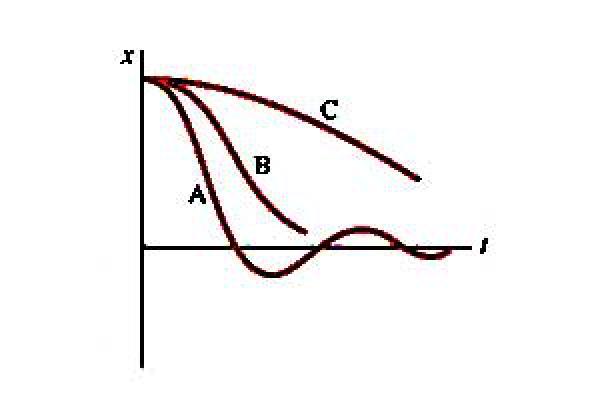

Curve A in the figure represents:

An underdamped situation.

A moderately damped situation.

Critical damping.

An overdamped situation.
